Pellegrini-Steida Syndrome – A Cause of Stubborn Medial Knee Pain

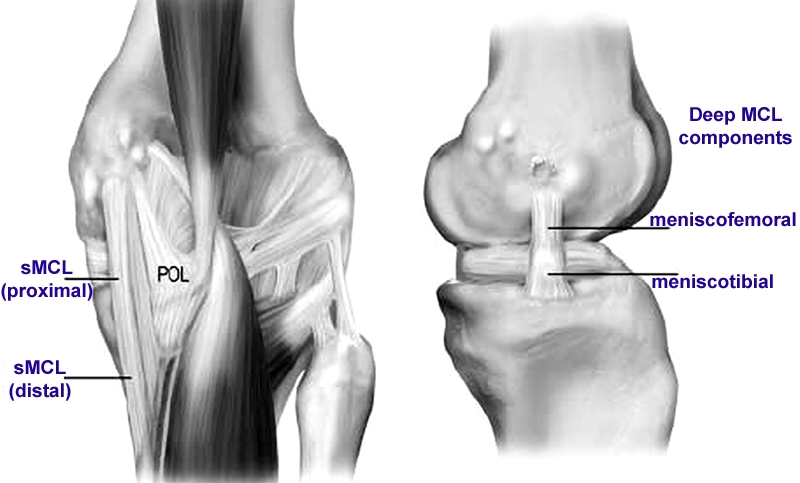

The sMCL is the largest structure and consists of one femoral and two tibial attachments. The central arm of the POL is an extension off the distal aspect of the semimembranosus, which reinforces the posteromedial aspect of the joint capsule. The dMCL is divided into meniscofemoral and meniscotibial components, and comprises the thickened joint capsule deep to the sMCL⁽⁴⁾.

The MCL has been shown to contribute 78% to the restraining force on the medial side of the knee. The sMCL has main control of valgus forces throughout the full range of movement, and helps to limit external rotation of the tibia when the knee is beyond 30˚of flexion. The dMCL mainly controls the anterior tibial translation of the flexed and externally rotated knee. Its role in controlling valgus stress is less relevant. The POL is tight in extension and in the first degrees of knee flexion. It controls posterior tibial translation as well as external rotation^{(2, 4, 5)}.

Presentation of PSS

PSS is most commonly developed in the tissue of the sMCL. In the majority of cases, this occurs following trauma to the MCL tissue. However, there have been cases without specific trauma^{(1, 3)}. As a result, there is debate as to whether the calcification occurs in these cases due to hydroxylapatite deposition disease rather than trauma⁽³⁾.

According to literature, it takes around 2-6 weeks to develop post-traumatic calcific deposits⁽⁶⁾. The deposition in the ligamentous tissue leads to inelasticity of the structure and generates pain. Athletes will complain of stiffness particularly when attempting to straighten the knee. Twisting activities will be aggravating, as well as impact-related exercise. Sensitivity of the medial knee to touch will be a common complaint, for example in positions when in contact with the other knee.

The patient can also present with mild swelling to the medial side of the knee, particularly close to the femoral attachment of the sMCL. There can be light warming to touch, but pain on palpation specifically. A palpable lump may also be present. Forced extension and flexion can provoke pain when examining. Ligamentous testing is stable when assessed, although valgus stress can produce pain especially with some external rotation added^{(2, 5)}. This is particularly aggravating past 30˚of knee flexion, which is when the sMCL is more biased.

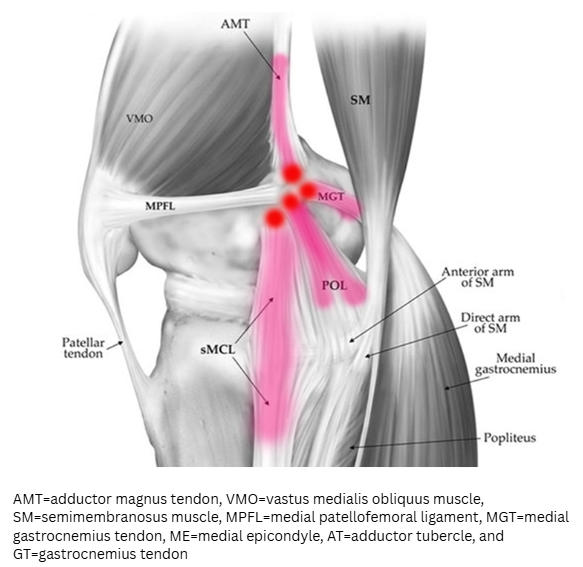

Awareness of adductor magnus or medial gastrocnemius involvement is important as a result of their proximity to the MCL structure (see Figure 3 below)⁽⁷⁾. Strength and length testing of these muscles is worth including in the assessment.

Investigations

Along with subjective and objective findings, imaging is advised prior to further treatment planning^{(1, 3)}. Standard anteroposterior X-ray would show a linear soft tissue opacity medial to the femoral condyle. The linear fashion is often suggestive of calcification, but computed tomography (CT) would confirm heterotopic ossification of the femoral attachment of the MCL (see Figure 4 below). Magnetic resonance imaging (MRI) helps to reveal a corticated structure within the proximal MCL, with no evidence of fat content. MRI is invaluable in defining the anatomy of the structures and confirmation of the site of calcification^{(1, 3, 5, 7)}.

PSS treatment

Conservative treatment options should always be considered first⁽³⁾. Only in severe cases should surgical intervention be offered. In this case, open surgical removal is preferred over image-guided aspiration to ensure total removal, whilst giving an accurate account of the stability of the MCL structure^{(1, 3)}. Conservative treatment options include non-steroidal anti-inflammatory drugs (NSAIDs) and analgesics^{(1, 3)}. If required, local corticosteroid or anaesthetic injection can be effective^{(1, 2, 3, 5)}. Other recommendations include extracorporeal shockwave therapy^{(1, 2)} or local dry needling⁽¹⁾. Research supports the role of rehabilitation (together with any pain-relief medication) as a means of accelerating soft tissue healing⁽⁸⁾, and taking advantage of the already proficient healing capacity of the MCL complex⁽⁹⁾.

Rehabilitation

Optimising the range of motion in the knee should be the first priority. This promotes joint mobility by preventing arthrofibrosis, but also by avoiding negative effects on muscular strength development, and promoting mechanotransduction^{(4, 8)}.

Periodised strengthening programs elicit greater strength gains than non-periodised programs, with the goal of optimising the neuromuscular systems to adapt to unaccustomed load or stressors⁽¹⁰⁾. With this kind of programme, the focus should be on lower extremity as well as proximal strength, and trunk strength to promote appropriate joint reaction forces at the knee⁽⁴⁾. Further emphasis should also be placed on hip abduction control during dynamic activities, as weakness here has been shown to place increased valgus stress across the knee⁽¹¹⁾. The following four exercises give a good grounding with the above in mind before developing sports specific rehabilitation:

1. Single-leg press: Keeping the affected knee in line with the knee. Push the resistance away from you. Return to the start position. Choose a weight where you can manage 6 repetitions (3 sets) (Figure 5).
2. Medial hamstring-biased Nordics⁽¹²⁾: In kneeling, fix both ankles. Lean forward keeping your trunk and hips stiff and bending from the knees only. Return to the start position. Repeat 6 repetitions x 3 sets (Figure 6).
3. Cable pallof press: Great for trunk rotational control, which transfers to the knee. Select an appropriate weight. The cable should be in line with the chest. Position into a shallow squat. Maintain this position and push hands away from chest. Repeat for 12 repetitions and change sides. Perform 3 sets (Figure 7a).
4. Single-leg squat off box: Great for functional hip abduction control. Sit back into a shallow squat, keeping the majority of your weight into the heel. Avoid a contralateral pelvic drop, and keep knee in line with 2nd-3rd toes. This will avoid a valgus loading mechanism. Repeat 12 reps for 3 sets (Figure 7b).

Return to sport

Rehabilitation should include sports-specific exercise. A battery of discharge and return-to-sport tests should be used for objective assessment (see Table 2). Failure of these tests were associated with a four times greater risk of re-rupture in ACL reconstructions⁽¹³⁾. Isokinetic testing requires specific equipment in the clinic. However, all the other assessments just need space, and are a very useful objective measurement for judging an athlete’s suitability for returning to sport.

References

1. Siddiq, M. A. B. & Jahan, I. (2016). Acta Radiologica Open; 6(11): 1-5
2. Gelber, P. E. & Perelli, S. (2018). Ann Joint; 6(78): 1-11
3. Olivier, A.C. et al (2015). Euro Jour Sp Med; 3(1): 45-51
4. Logan, C.A. et al (2016). Int J Sports Phy Th; 11(7): 1177-1190
5. Wijdicks, C.A. et al (2010). J Bone Joint Surg Am; 92: 1266-80
6. Kamawal, Y. et al (2016). BMC Musculoskeletal Disord; 17: 283
7. Wiegerinck, J.L. & Somford, M.P. (2016). JISAKOS; 1: 214-218
8. Kahn, K. M. & Scott, A. (2009). Br J Sports Med; 43: 247-251
9. Zhang, J, et al (2011). BMC Med; 9(1): 68
10. Lorenz, D.S et al (2010). Sports Health; 2(6): 509-518
11. Powers, C.M. (2010). J Orthop Sports Phys Ther; 40(2): 42-51
12. Bourne, M.N. et al (2017). Br J Sports Med; 51(13): 1021-1028
13. Kyritis, P. et al (2016). Br J Sports Med; 50: 946-951
